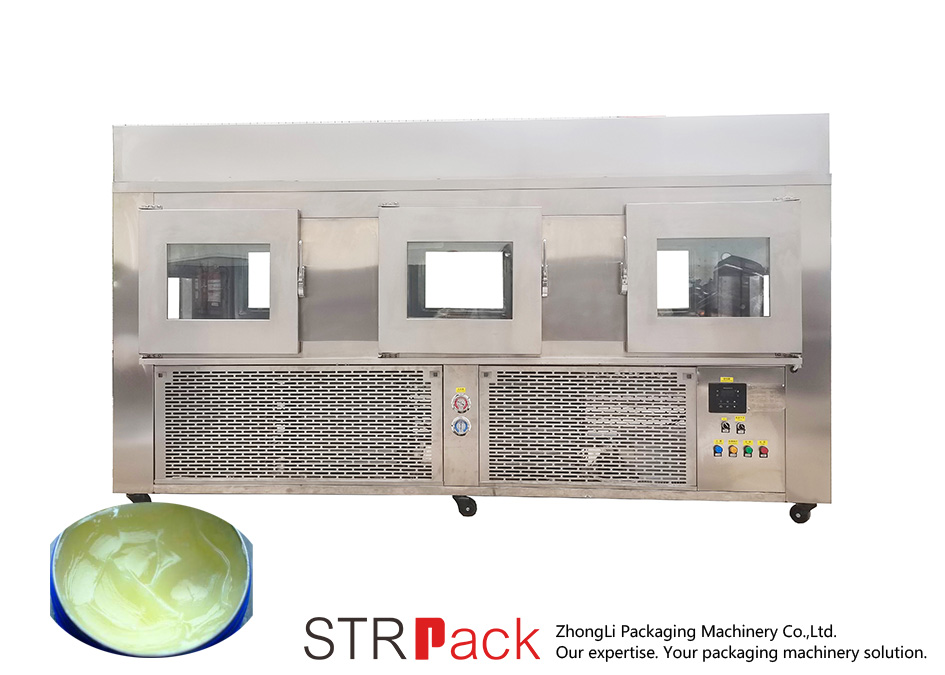

Tunnel type Cooling Machine
Brief Introduction:
Tunnel type chiller with conveyors used to cool cosmetic products after hot filling.
Procedure: put the hot filling products on the conveyor-cooling-products exiting the tunnel.
Features
- Automatic temperature control.
- Automatic defrost design.
- Separate control of refrigeration system and assembly line control system.
- Made of sanitary SUS304 stainless steel, sanitary.
- Using air-cooled air cooler, the outlet temperature can reach -18 degrees.
Multi-lane Circulation Conveyor
The speed is adjustable, operation is stable (suitable for bottle, jar products)
Air Cooler
The refrigeration system adopts air-cooled air cooler, the outlet temperature can reach -18 degrees.
Compressor
Imported high-efficiency fully enclosed double scroll compressor, stable operation and long service life.
Control System
Constant temperature controller, speed controller, start/stop buttons.
Main Parameter:
|
No. |
Item |
Technical Data |
|
1 |
Speed |
30-90 bottles/min |
|
2 |
Bottle Diameter |
Φ20-Φ100 mm |
|
3 |
Bottle Height |
10-200 mm |
|
4 |
Power Supply |
7.5HP/380V/50Hz |
|
5 |
Air Pressure |
N/A |
|
6 |
Conveyor Belt |
5M X 7/5 |
|
7 |
Weight |
450 KG |
|
8 |
Dimensions |
5000×1000×1500(L×W×H) mm |
After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 2 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD100.00/day/person.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
