Automatic Gear Pump Filling Machine

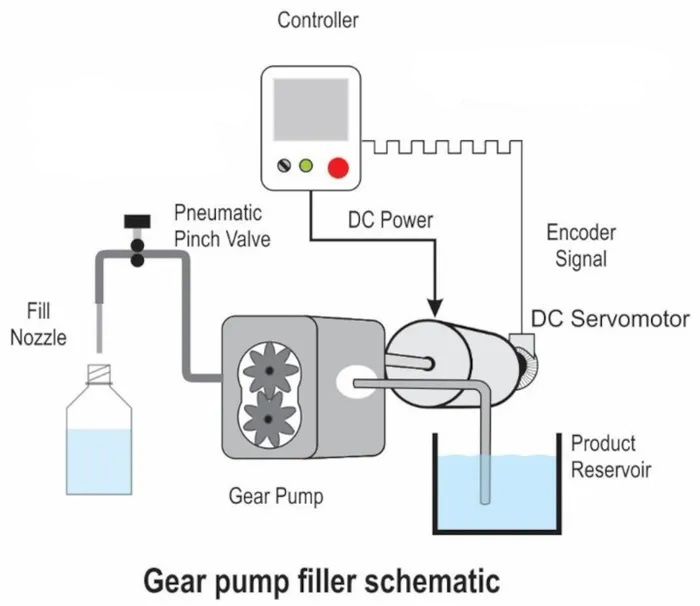

How Do Gear Pump Fillers Work?
- Once you know, you may specify gear pump fillers more often because of their simplicity and accuracy in filling liquids.
- Our high-precision gear pump has both conveying and metering functions, and can achieve accurate metering of products within 20,000 centipoise. Filling equipment using pump metering has a wider range of applications, simple and compact structure, and easy cleaning. Therefore, this series is an ideal choice for filling equipment for metering.
- Using servo motor control, speed and flow adjustment are accurate and convenient.
- High metering accuracy and stable flow.
- There are rich choices of pump body and gear materials, which can be selected according to needs.
Brief Introduction:

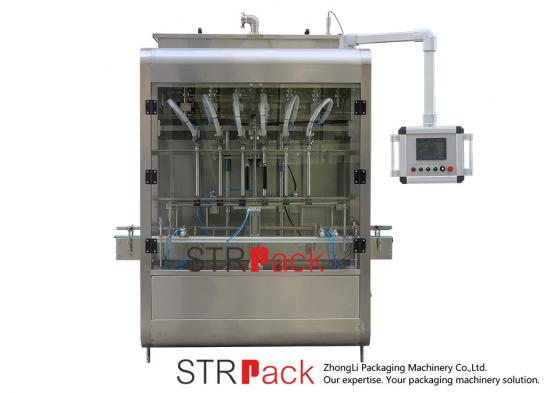

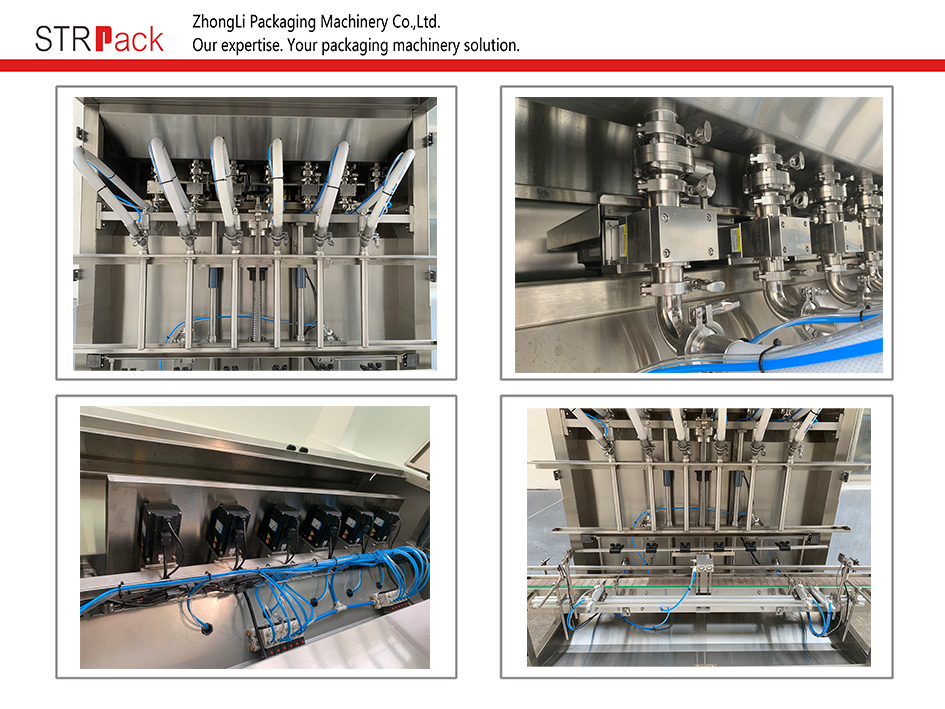

The STRGF series bottle filling machines are filling systems with a gear pump and are specifically designed and built to handle liquid packaging on the market. This gear pump filling machine is also equipped with PLC controls in combination with color touch screen displays, allowing operators to accurately control product flow and speed to each individual filling head resulting in accurate fills.
Features:
- Filling range from 50ml to 5000ml
- Four (4) to twenty (20) filling nozzles
- PLC controlled with touch screen panel, easy access to all settings
- Quick and easy product changeover time
- Drip tray protects bottles from nozzle product dripping
- 50 products can be stored in memory for recall
- the best accuracy is ±0.2%
- Liquid contact parts in stainless steel SUS 304
- Bottle width (diameter): 50mm-200mm
- Bottle height: 120mm-350mm
- Capacity: ~ 100 BPM
Main Parameter:
|
Model |
Unit |
STRGF |
|||
|
Nozzle Number |
PCS |
6 |
8 |
10 |
12 |
|
Filling volume |
Ml |
100-5000ml |
|||
|
Production capacity |
Bottle/h |
1000-5000 pcs/Hour ( Depends on Filling volume) |
|||
|
Quantitative error |
% |
≤±0.5% |
|||
|
Voltage |
V |
380V/220V, 50Hz/60Hz |
|||
|
Power |
KW |
2 |
2.5 |
3.5 |
4.5 |
|
Air Pressure |
MPA |
0.6-0.8 |
|||
|
Air consumption |
M3/min |
0.8 |
1 |
1.2 |
1.2 |
After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 2 year(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD100.00/day/person.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
