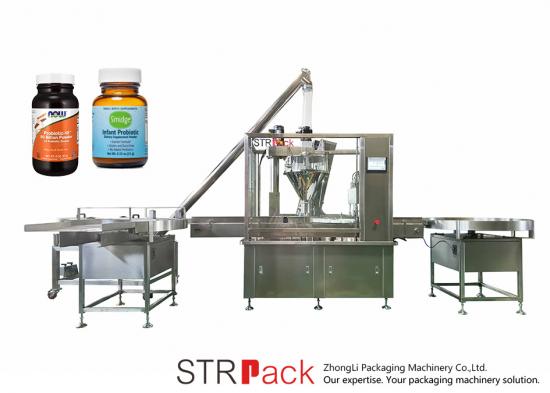

Automatic Powder Filling & Capping Monoblock Machine
Brief Introduction:
Automatic Powder Filling & Capping Monoblock Machine mainly used for 10~500g powder filling, feeder caps, capping. Sero motor auger filling machine, touch screen interface, frequency control. And it has the functions of lack of bottle, no bottle, no cover, etc., high degree of automation. Filling does not leak powder, electromagnetic vibration to feed cover, equipped with dust cover. The machine is reasonable in design and easy to operate. SUS304 machine body, GMP standard and CE certificate approved.
The powder filling machine is applying to filling all kinds of powders, mixed powder-granule in variety of bottles and cans. Such as milk powder, protein powder, Probiotics powder, chicken essence, monosodium glutamate, pharmaceuticals, food additives, etc.
Chemicals
Cosmetics and Personal Care
Food and Beverage
Pharmaceutical
Nutraceutical
Features:
- No cap no bottle.
- No bottle no cap.
- Stainless steel construction to meet cGMP standard.
- This is a automatic auger type can/bottles metering filling capping machine ,designed for metering and filliing various dry powder into different rigid containers: Can/Bottle/Jar etc.
- The Machine provides powder metering and filling capping functions.
- Bottles and cans are introduced by conveyor belt combined with gating system.
- There is a photo eye sensor for bottles detection so as to achieve bottle-fill ,no-bottle no-fill.
- Automatic bottle postioning-filling-releasing,optional vibration and elevation.
- The quick disconnect hopper, no need tool to open and clean
- Servo motor and servo drive to control the filling auger
- All products are made of SS304 and are designed for easy changeover and cleaning.
- By changing the auger tooling can meet different weight range.
Main Parameter:
|
Model |
STRPF series |
STRPF series |
|
Dosing mode |
Directly dosing by auger |
Directly dosing by auger |
|
Filling weight |
1 - 500g |
10 – 5000g |
|
Filling Accuracy |
≤ 100g, ≤±2%； 100 – 500g, ≤±1% |
≤ 500g, ≤±1%; >500g, ≤±0.5% |
|
Filling Speed |
15-40 BPM |
|
|
Capping Speed |
15-40 BPM |
|
|
Power Supply |
3P AC208-415V 50/60Hz |
|
|
Air Supply |
6 kg/cm2 0.05m3/min |
|
|
Total power |
1.8Kw |
2.5Kw |
|
Total Weight |
560kg |
700kg |
|
Overall Dimensions |
2000×1200×2150mm |
|
|
Hopper Volume |
25L |
50L |
After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 2 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD100.00/day/person.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
