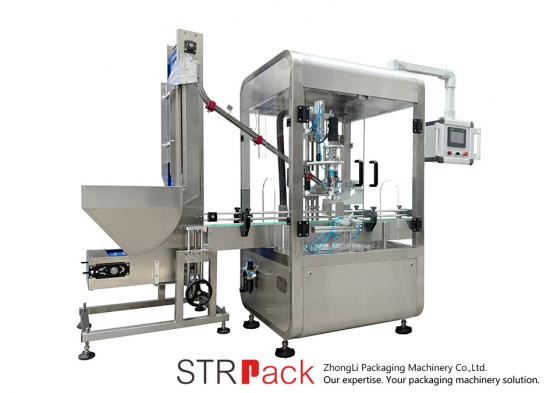

One Head Auto Servo Capping Machine
Brief Introduction:

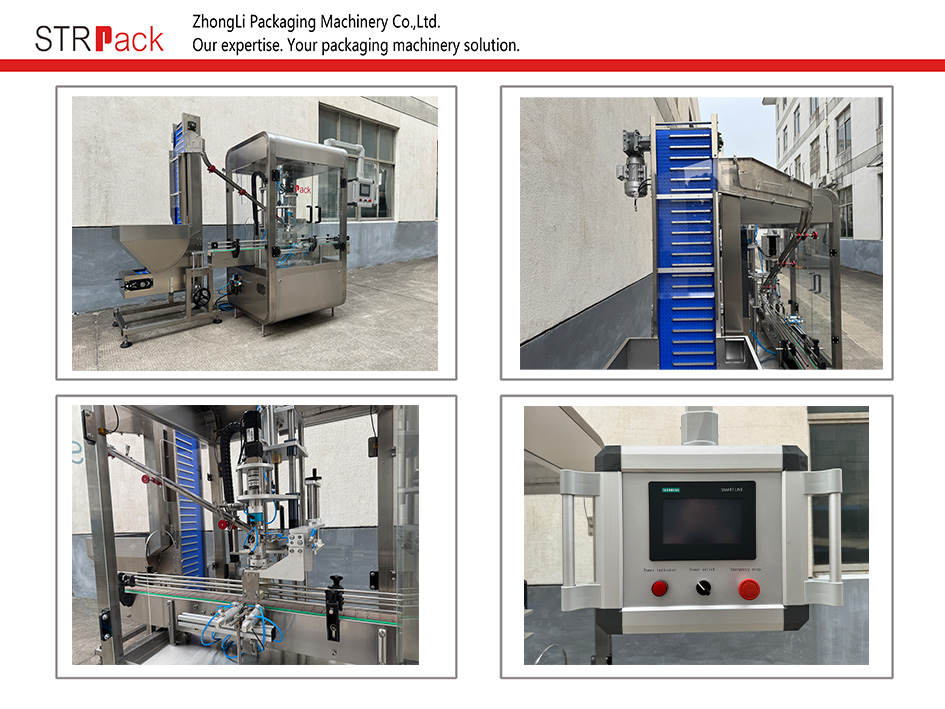

The one head auto servo capping machine is an electrical integrated equipment designed and developed by our company. The machine consists of HMI, PLC, servo capping mechanism, PPU manipulator automatic capping mechanism, automatic capping elevator and linear conveyor. It can realize the capping or pressing operation of 0.5-5L bottles, mainly meeting the automatic capping needs of the pharmaceutical industry, food industry, cosmetics industry and other industries.
- Stable and reliable capping quality, convenient replacement of capping heads, suitable for batch production of multiple varieties
- Automatic sensing of bottles for capping, easy to operate
- Torque protection function can maintain constant torque capping, protecting the bottle cap from damage caused by high torque
- Heavy duty stainless steel frame
- PLC controlled with touch screen panel, easy access to all settings
- Pick & Place device is driven by servo motor with electrical cylinder
- Capping head is driven by servo motor
- Capping torque is set on the control panel
- Cap sorter unscrambles bulk caps and supplies to the cap chute for fully automatic application. (Vibration or Waterfall)
- Fast and easy capping head changeover into another cap type
Application
Main Parameter:
|
No. |
Model |
FX-1M |
|
1 |
Speed |
≤1500bottles/hour |
|
2 |
Cap
Type |
Screw
cap |
|
3 |
Bottle
Diameter |
≤200(L)*150(W)mm |
|
4 |
Bottle
Height |
120-350mm |
|
5 |
Power |
2.0KW |
|
6 |
Air
Pressure |
0.6-0.8Mpa |
|
7 |
Voltage |
220V/380V
50Hz/60Hz |
After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 2 year(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD100.00/day/person.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
