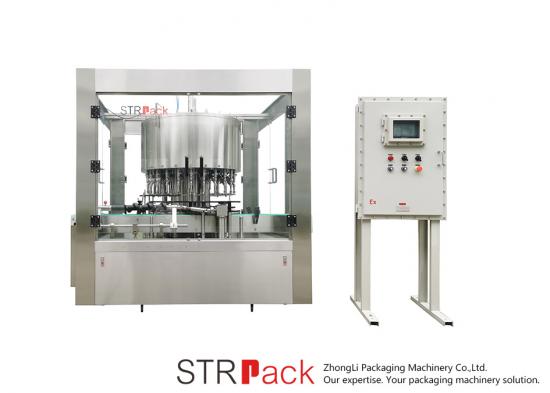

High-speed Rotary Liquid Filling Machine
Viscous Food & Condiment Fillers
Rotary Filling Machines specifically designed and optimized for viscous food products and condiments including mayonnaise, mustard, and mole.
Home Care & Laundry Light to Semi-Viscous Product Fillers
Rotary Liquid Filling Machines for Bottle specifically designed and optimized for personal care products including body wash, shampoo, hand soap, hand sanitizer, and lotions.
Personal Care Product Fillers
Rotary Filling Machines specifically designed and optimized for light to semi-viscous home care products including all-purpose cleaners, window cleaners, floor cleaners, detergents, and fabric softeners.
Automotive Fluid Fillers
Rotary Filling Machines specifically designed and optimized light to semi-viscous automotive fluid products including motor oils, fuel additives, brake fluids, antifreeze, and windshield washer fluids. Explosion proof versions of all available models are offered.
Infinitely adjustable liquid flow rates allow filling of light and foamy to viscous products without tedious changeovers.
Brief Introduction:
The STRPACK Rotary Filling machines redefine design standards with their exceptional performance. These machines offer elevated speed, safety, and productivity, all while maintaining production efficiency and cost-effectiveness. The Rotary Volumetric Filling Machine stands out as an impressive line of equipment designed for precise volumetric filling of viscous and semi-viscous products, thanks to our innovative ‘Time and Flow’ metering system. This design incorporates advanced features like an overhead drive system and powered nozzle height adjustment with convenient job memory functionality.
In the realm of high viscosity filler designs, the rotary volumetric filling machines are recognized as the most accurate choice.
Features:
- Suitable for filling a wide range of liquids from light oils to heavy viscous semi-solids at speeds of up to 150+ CPM
- Touch screen control packaging includes job memory, tooling memory, and management lockout
- Improved star wheel drive system with maintenance free factory set overload clutches.
- Variable speed “Top Drive” system keeps key systems away from wetted areas for easy access and lasting performance
- Can accommodate glass, plastic, and metal containers
- Improved bottle detect sensor with easier adjustment and more reliable operation under severe conditions.
- Each machine incorporates safety interlocks, polycarbonate guarding, and other integrated safety features
- All systems include self-aligning tool less change parts for quick and trouble-free changeover
- Easy operation and maintenance
- No-drip positive shut off valve design.
- Easy cleaning and changeover No-drip positive shut off valve design.
Options
- Diving Heads
- Explosion Proof
- Sanitary Conveyor System
Main Parameter:
|
Model |
SFL-24 |
SFL-32 |
|
Dimension |
2200*2200*2300 mm |
2400*2400*2300 mm |
|
Filling head |
24 |
32 |
|
Capacity（1L） |
6000 BPH |
10000 BPH |
|
Power |
2 KW |
3 KW |
|
Suitable bottle |
Diameter:30-100 mm height:50-280 mm |
|
|
Filling System |
Flow Meter Gravity/Pump filler |
|
|
Filling error |
≦±0.5-1% |
|
|
Filling range |
100ML-5L |
|
|
Air pressure |
0.5-1.0 Mpa |
|
|
Power supply |
220V/380V, 50Hz |
|
After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 2 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD100.00/day/person.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
