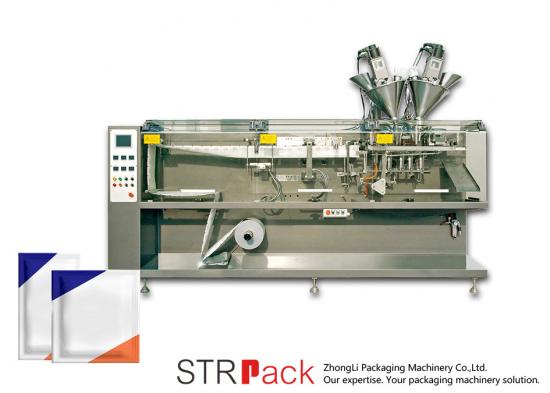

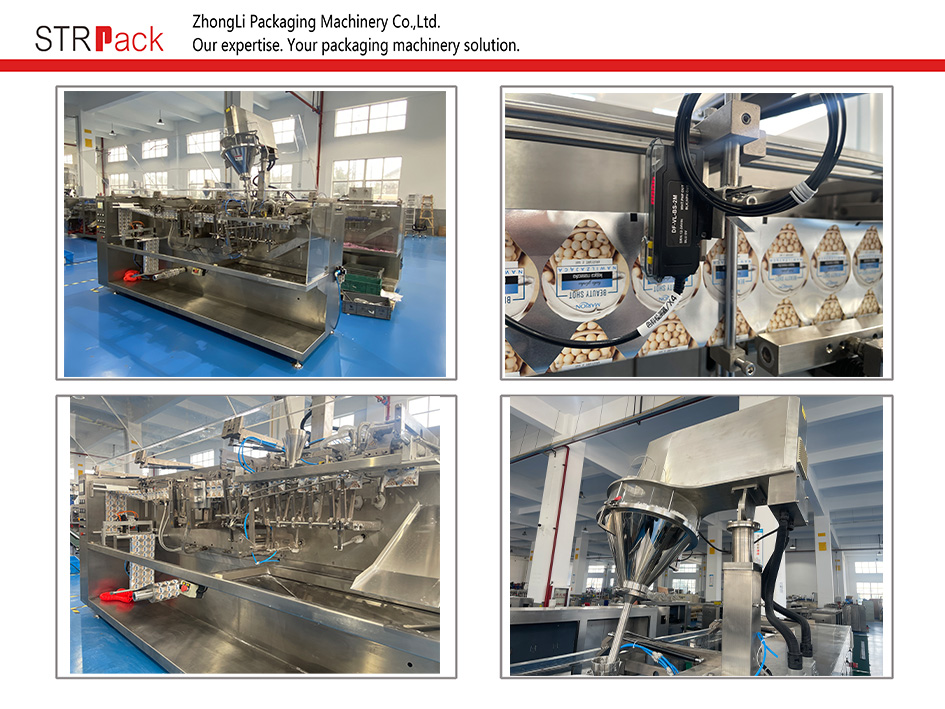

Automatic Horizontal Packaging Machine for Powder
Used for packaging, food, pesticides, pharmaceutical drugs, fertilizers, and other products, whether in liquid, powder or granular form through simple setting adjustments.
Main Features
- Import AC motor & frequency control speed, stable operation, lower speed with bigger torque lead to a nice function even with a heavier load.
- The auger filling system is controlled by Panasonic servo motor.
- Bag making system is separate from sealing. They are working under the control of PLC. It is suitable for different products & bag sizes.
- It adopts hot sealing packaging material such as PE, laminated film , etc. Automatic bag making, dosing, filling and packaging. Bag type is stand-up pouch. It can adopts various filling machines, then suitable for different products.
- It adopts PLC, frequency control device which with a powerful control & stable operation. Touch screen lead to an easy operation. Import photoelectric sensor, encoder, proximity switch, etc presents a nice mechanotronics.
Technical Parameter:
Item |
Parameter |
|
Packaging Parameter |
Bag Width |
60-180mm |
Bag Height |
80-225mm |
|
Filling Volume |
400ml(maximum) |
|
Equipment Dimension |
Width |
1000mm |
Length |
3500mm |
|
Height |
2300mm |
|
Weight |
1000Kg |
|
Working Condition |
Environment Temperature |
-10℃—+55℃ |
Relative humidity |
< 85%( Non-condensing) |
|
Power Supply |
According to client’s specifications |
|
Power Frequency |
According to client’s specifications |
|
Power Consumption |
5 Kw |
|
Air Pressure |
0.5MPa |
|
Air Consumption |
0.7m³/min |
About HFFS
Horizontal form fill seal packaging machine has multi-function design, the compatibility is the highest than other packaging machine. With different filling system, it can pack different kinds of product and material and provide the best filling accuracy including powder, liquid, paste, solid, table, capsule, etc. HFFS machine can help customer not only reduce their labor cost, running cost, production time but also increase their efficiency. HFFS can make various kinds of bag like 3-sides-sealed, 4-sides-sealed and stand-up bag with or without special shape. Different sealing patterns are also available like cross, diamond, linear or total flat.
