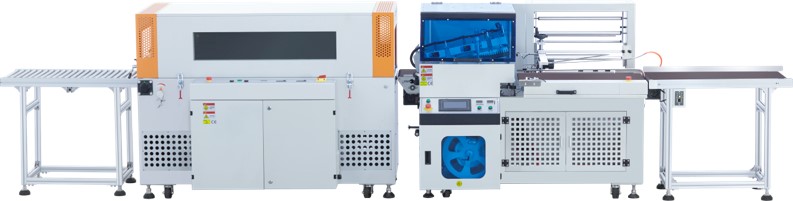

Auto L-shaped Sealing Cutting Packaging Machine
The auto L-shaped sealing, cutting and shrinking packaging machine is an economical sealing and cutting machine specially developed and designed for thin and small products. At the same time, it only needs to manually adjust the film guiding system and the feeding conveying platform, the speed can reach 15-35 Pcs/min, the sealing and cutting line is thin and centered,The packaging effect is flat and beautiful, suitable for products of different widths and heights, widely used in cosmetics , medicine, food, software, beverages, tobacco, daily chemicals, automobiles, cables, electronics and other large-scale products shrink packaging.
Features:

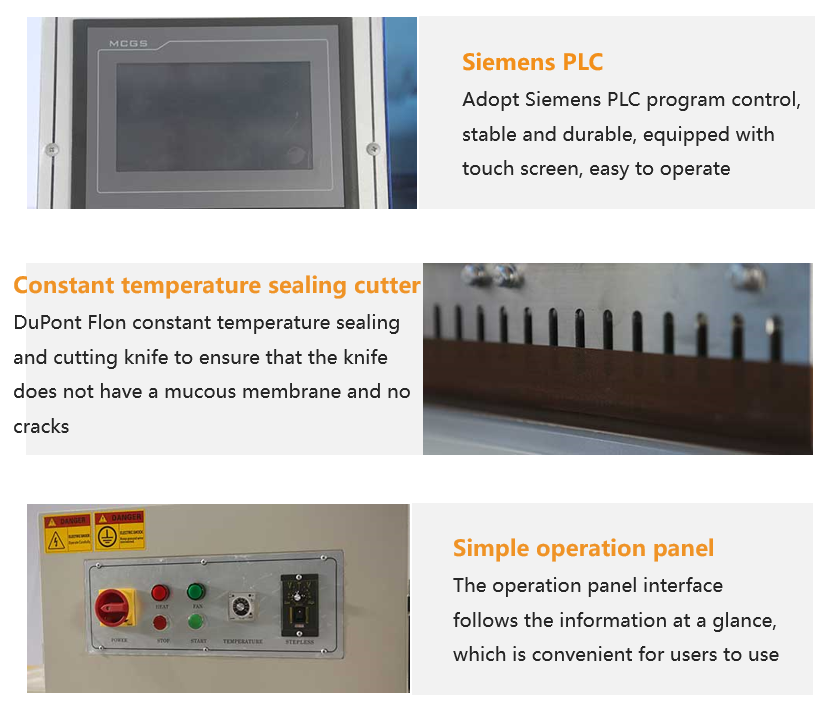

- Firm sealing: The special material of the sealing and non-opening cutter is adopted, and the high temperature resistant surface material of DuPont Teflon is used to ensure that the sealing is cracked;
- Photoelectric automatic detection: Two sets of horizontal and vertical photoelectricity are used for easy switching, and packaging can be easily completed for thin or small products;
- Convenient adjustment: When the size of the package is changed, manually adjust the adjustment handle without changing the mold and bag maker；
- Auto coiling: Equipped with induction motor, automatic coiling material;
- Safer: The machine is equipped with a safety cover, and the sealing knife is equipped with an anti-cutting device, which is safer to use.
Main Parameter:
|
MODEL |
STRC-4535I |
STRS-5030LW |
|
Film |
POF |
POF |
|
Packing Speed |
10~35pcs/min |
20~80pcs/min |
|
Packing Size |
W+H≤380，H<100, H+L≤450，L≥100 |
/ |
|
Cutter size / Tunnel size |
Cross cutter：450mm Vertical cutter：555mm |
L：1500mm W：500mm H：300mm |
|
Max Temperature |
240℃ |
200°C |
|
Electrical |
220V 50/60HZ |
220V/380V 50-60Hz 3 Phase |
|
Power |
2.5KW |
10KW |
|
Max Current |
6.5A |
18A |
|
Air Compressing |
0.6MPa~0.85MPa |
/ |
|
Table Height |
850~880mm |
850~880mm |
|
Machine dimension |
L：1740mm W：1265mm H：1310mm |
L1320×W775×H1520mm |
|
Machine Weight |
300kg |
185kg |
After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 2 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD100.00/day/person.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
