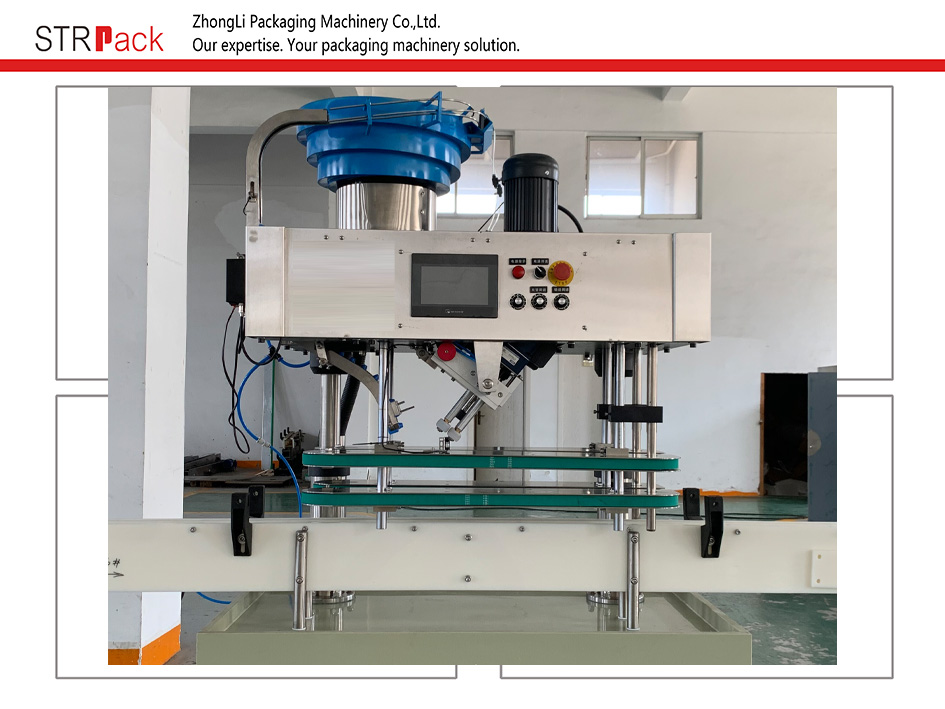

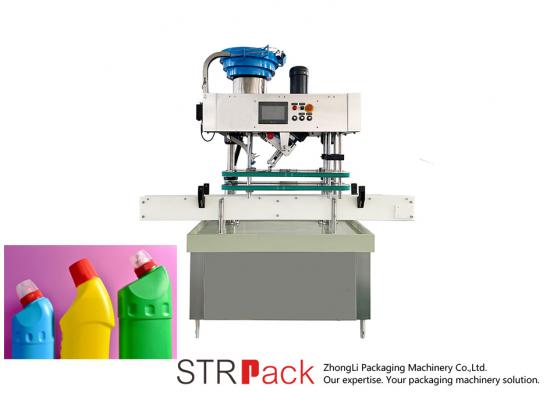

Automatic Angled Neck Bottle Capping Machine
Automatic Angled Neck Bottle 4 Wheel Capping Machine is specific to high corrosive liquid bottle capping , can automatically install screw cap for complicated-shape bottle in bleaching liquid, disinfectant, toilet cleaner, insecticide and the corrosive liquid. And designed with automatic caps arranging, falling, screwing. Greatly reduce the manual operation.
*Conveyor belts and tables Made of PP material, anti-corrosive.
*New and Creation function: Automatically Angle neck bottles feed the cap and capping.
Brief Introduction:
It is suitable for even every type of threaded caps. Normal round caps, spray caps, trigger caps and pump caps.
The reliability, ease of operation and change-over procedure and flexibility of installation are the most important advantages of the capping machine.
A few parts need to be changed and simply for replacing when it's is for different sizes of caps and bottles.
60 pre-saved programs to recall for different sizes of bottles and cap change-overs.
Digital torque adjustment
Simple operation
Custom design is available.
Main Parameter:
|
No. |
Model |
XG-4M |
|
1 |
Speed |
Up to 40 bottles per minute. |
|
2 |
Torque |
0.5 - 2.5N or 0.5 - 5N. |
|
3 |
Bottle
Height |
Up
to 300mm |
|
4 |
Cap
Diameter |
Up
to 70mm |
|
5 |
Power |
2KW |
|
6 |
Air
Pressure |
0.6-0.8Mpa |
|
7 |
Voltage |
220V/380V
50Hz/60Hz |
|
8 |
Driven
Way |
Motor
with 4 wheels |
After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 2 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD100.00/day/person.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
